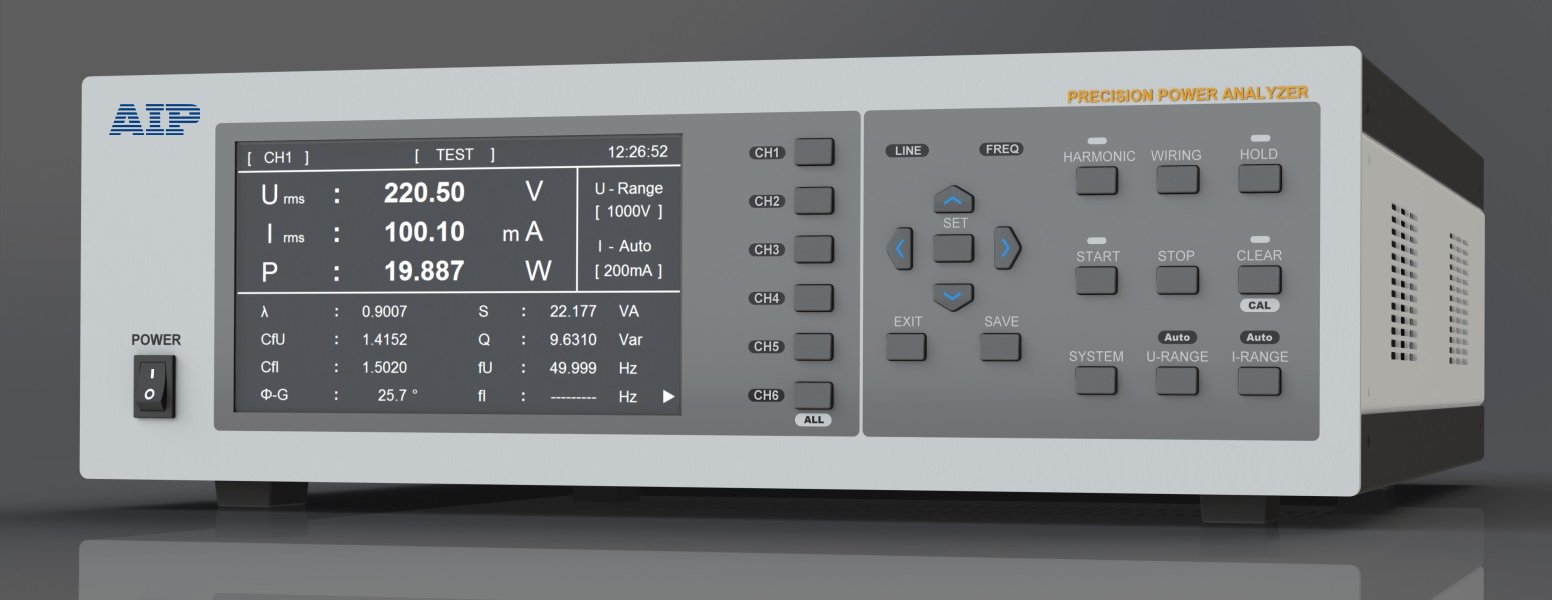

Model AIP87500

■ Six-channel power analysis.

■ Basic accuracy   ±0.1%.

■ Measurement bandwidth DC, 0.5Hz~100kHz.

■ Sampling rate   100kSps.

■ Maximum voltage   1000Vrms (1500Vpk).

■ Maximum current   50A/20A/10A/5A/2A/1A, support mix and match, optional sensor.

■

Typical application

AC: 200 Arms

Transformation ratio: 1A/2.5mV

■ Single-phase/three-phase household appliances, commercial appliances, standby power consumption, and power analysis.

■ Photovoltaic inverter power analysis and efficiency.

■ Electric vehicle and charging pile electrical performance measurement.

■ Power electronics, transformers, and generator power analysis.

■ Power analysis of frequency converter and variable frequency motor.

■ Switching Power Supply Power Analysis.

■ Lighting, LED power analysis.

Main features

■ Many Pass Channel:  1 to 6 channel measurement unit configuration, which can be flexibly configured as multi-channel single-phase, three-phase three × 2, three-phase four × 2, four-phase (DC + three-phase three), and other modes to meet the measurement needs of various loads (air conditioners, inverters, frequency converters, motors).

■ High precision:  using a high-speed DSP processor, a 16-bit high-speed and high-precision AD converter, the basic accuracy can reach 0.1%, and the fastest 100ms display data update cycle.

■ Width achievement Rate:  Single channel can measure current 50A (optional 20A, 10A, 5A, 2A, 1A and other specifications, and support mixed matching), minimum power resolution 0.1mW, meet the standby power consumption measurement needs and rated power measurement needs.

■ Width frequency Band:  AC and DC signals, power measurement bandwidth DC, 0.5Hz~100kHz, can meet various standard and non-standard sinusoidal waveform load power measurement.

■ Frequency measurement:  Six channels can perform frequency measurement simultaneously.

■ Line filtering: A  500Hz, 5.5kHz low-pass filter is used to measure the fundamental value of the PWM waveform and filter out high-frequency interference of the switching power supply current.

■ Pass feel Transformer:  Transformer ratio function, supports conventional II, VV type voltage/current transformers; supports IV type current sensor with BNC interface, maximum input voltage 10V, optional large current sensor.

■ Efficiency calculation:  can simultaneously measure the input and output energy consumption of the equipment and calculate its efficiency.

■ Energy accumulation:  Positive energy, negative energy, and comprehensive energy can be accumulated separately to measure the buying and selling energy.

■ Threshold alarm:  Each channel can independently set the voltage, current, power, power factor, and other thresholds and measurement thresholds, automatically determine the upper and lower limits, and alarm.

■ Chinese and English interface:  You can switch between Chinese and English operation interfaces.

Key features

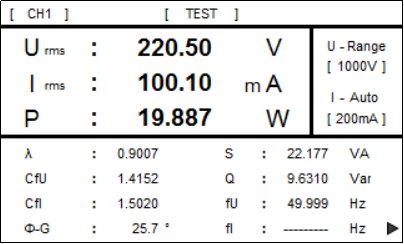

■ Single channel measurement

■ Peak Detection

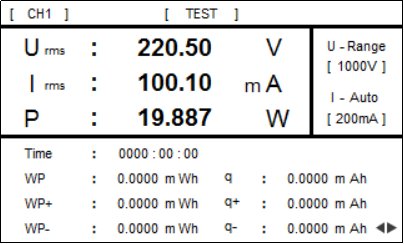

■ Energy measurement

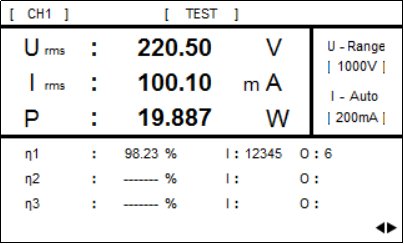

■ Efficiency measurement

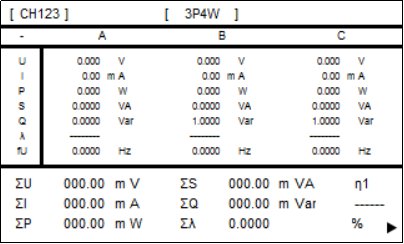

■ Three-channel measurement

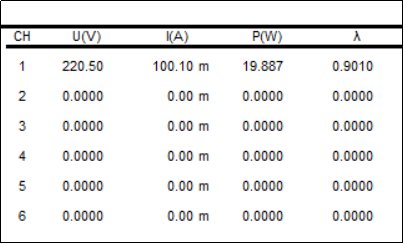

■ Six-channel measurement

Channel configuration

The multi-channel power analyzer can support a variety of wiring methods, including 1P2W, 1P3W, 3P3W, 3V3A, 3P4W, etc. Users can configure the multi-channel mode according to usage requirements to meet the measurement of voltage, current, power, efficiency, and other parameters of specific loads.

Application

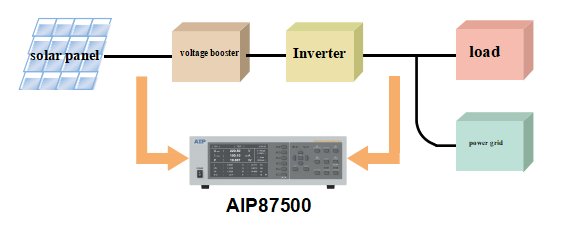

■ Power measurement of photovoltaic inverters.

√ Meet the needs of CGC/CF 004-2011、CNCA/CTS 0004- 2009A.

√ voltage range 0~1000V.

√ Current range: 0- 50A/ current sensor.

√ Simultaneous measurement of input and output (single-phase and three-phase) power and power factor.

√ Automatic efficiency calculation.

√ Bidirectional power measurement for both purchasing and selling electricity.

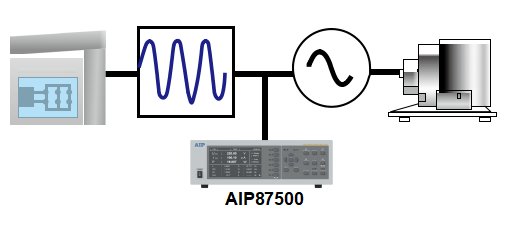

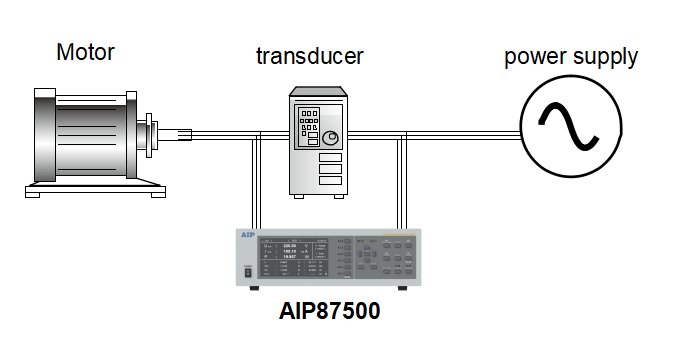

■ Power measurement of variable frequency motors and frequency converters

√ Meet the GB12668 standard.

√ Power bandwidth DC, 0.5Hz to 100kHz.

√ Current range: 0- 50A/ current sensor.

√ Input and output power can be measured simultaneously.

√ The optional filter filters out the carrier

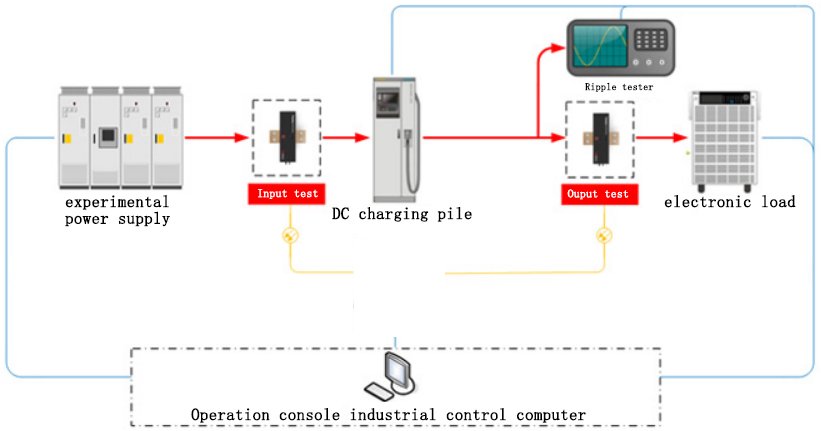

■ Measurement of the electrical performance of charging piles and electric vehicles

√ Multi-channel, can simultaneously test several parameters: charging station performance, battery charging and discharging performance, power conversion performance, motor performance, etc.

√ AC/DC, maximum current 50A, and a larger current sensor can be expanded.

√ High precision, with a basic accuracy of 0.1% and a minimum power resolution of 0.1 mW.

√ Measure the instantaneous RMS value, average value, peak value, and electrical energy of AC and DC signals.

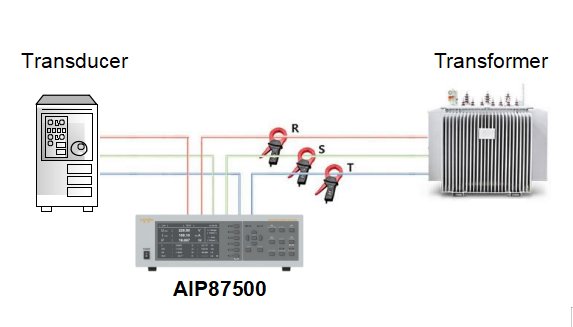

■Transformer power measurement

√ The power factor accuracy range is as low as 0.001.

√ Multi-channel synchronous high-speed sampling.

√ Power bandwidth DC, 0.5Hz to 100kHz.

√ Current range: 0- 50A/ current sensor.

√ Input and output power can be measured simultaneously.

■ Power supply and UPS power measurement

√ Current range: 0~1A/2A/5A/10A/20A/50A

√ Power bandwidth DC, 0.5Hz to 100kHz.

√ Simultaneous measurement of input and output (single-phase and three-phase) power, and monitoring of battery charge and discharge.

√ Automatic efficiency calculations.

■ Home appliance performance evaluation, standby power consumption measurement

√ Meet the IEC 62301-2011 standard

√ Current range: 0~1A/2A/5A/10A/20A/50A.， It can measure the rated power and standby power.

√ The minimum power resolution is 0.1 mW.

√ Automatically recognizes the state of running/stopping/standby of electrical appliances and selectively accumulates electrical energy.

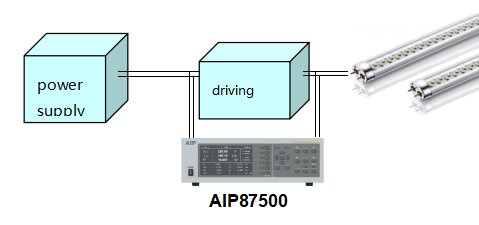

■ Lighting, LED power measurement

√ The current range is 0-1A/2A/5A/10A.

√ The minimum power resolution is 0.1 mW.

√ Measures drive power input, output power, power factor, and efficiency.

Specification

Accessories

■ Voltage test clip

■ Power cord

■ Communication line

Purchase

■ BNC current sensor interface

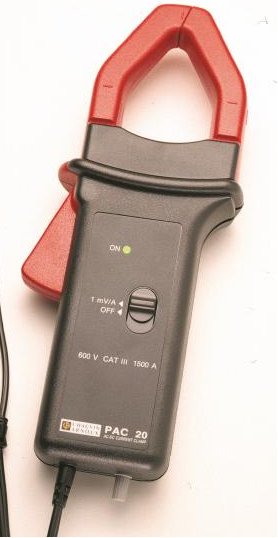

■ AC Current Sensor

AC/DC current sensor
